Introducing the DJI Zenmuse H30T, DJI’s flagship waterproof, multi-sensor payload designed for ultimate versatility and precision. Engineered for the DJI Matrice 350 RTK and Matrice 400 RTK drones, the H30T integrates five powerful modules — a wide-angle camera, zoom camera, thermal camera, laser rangefinder, and near-infrared (NIR) illuminator — all in one rugged, IP54-rated unit. Capture every detail with up to 34× optical zoom and 400× digital zoom, while advanced night vision and infrared thermal imaging up to 1600°C (with IR Density Filter) make it perfect for search and rescue, firefighting, inspections, and law enforcement. The DJI Zenmuse H30T redefines aerial awareness and performance, delivering unmatched clarity, precision, and reliability in any environment.

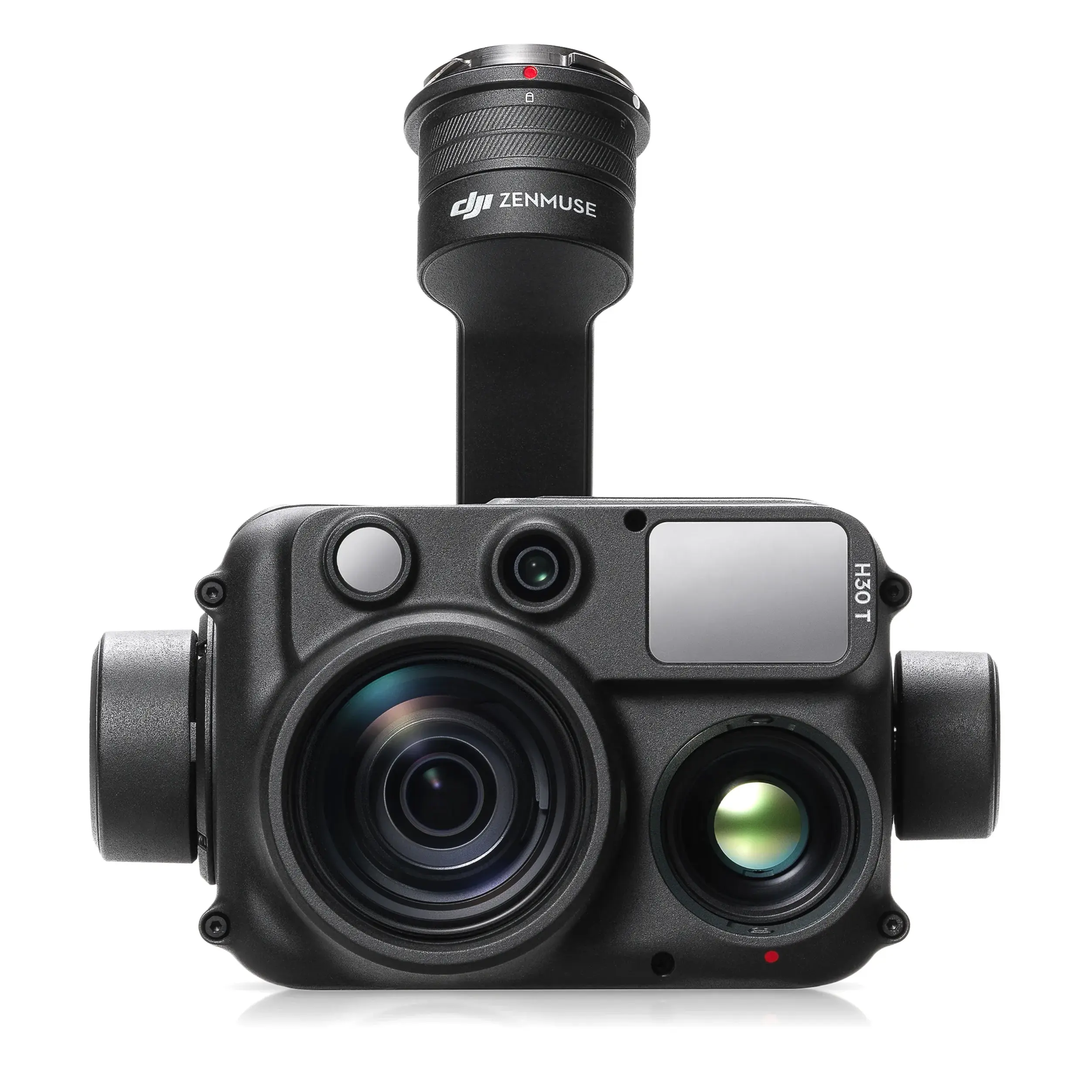

DJI Zenmuse H30T Camera with Thermal for Matrice 350 / Matrice 400
General
| Weight | 9205g |
| Ingress Protection Rating | IP54 |
| Supported Aircraft | Matrice 300 RTK (requires DJI RC Plus) Matrice 350 RTK |
| Video | Pre-RecordingSupported |
Gimbal
| Gimbal | Controllable RangeTilt: -120° to +60° Pan: ±320° |
| Angular Vibration Range | Hover: ±0.002° Flight: ±0.004° |
Zoom Camera
| Sensor | 1/1.8-inch CMOS, Effective Pixels: 40 MP |
| Lens | DFOV: 66.7° to 2.9° Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 Focus: 5 m to ∞ |
| Metering Mode | Spot Metering Average Metering |
| Shutter Speed | 2-1/8000 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-819200 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported (embedded subtitles) |
| Max Photo Size | 7328×5496, 3664×2748 |
| Photo Format | JPEG |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Hybrid Optical Zoom | 34× |
| Max Zoom | 400× |
Wide-Angle Camera
| Sensor | 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Lens | DFOV: 82.1° Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm) Aperture: f/1.7 Focus: 1 m to ∞ |
| Shutter Speed | 2-1/8000 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-409600 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported (embedded subtitles) |
| Max Photo Size | 8064×6048, 4032×3024 |
| Photo Format | JPEG |
| Video Codec and Bit Rate Strategy | H.264, H.265, CBR, VBR |
Laser Range Finder
| Wavelength | 905 nm |
| Measurement Accuracy | ≤ 500 m: ±(0.2 m+measurement distance×0.15%) > 500 m: ±1.0 m |
| Measurement Range | 3-3000 m Range for Common Objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m |
| Safety Regulation Level | Class 1 |
| Laser Spot Size | @100 m: approx. 50×450 mm @1000 m: approx. 450×4500 mm |
NIR Auxiliary Light
| Wavelength | 850 nm |
| FOV | 4.6±0.6° (Round) |
| Illumination Range | <@100 m: Approx. 8m diameter circle |
Thermal
| Thermal Imager |
Uncooled VOx Microbolometer |
| Lens |
Focal Length: 24 mm (equivalent focal length: 52 mm) |
| Aperture | f/0.95 |
| DFOV | 45.2° |
| Digital Zoom Equivalent |
32× |
| Video Resolution |
1280×1024@30fps |
| Video Format |
MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy |
H264, H265, CBR, VBR |
| Photo Resolution |
1280×1024 |
| Photo Format |
R-JPEG |
| Pixel Pitch |
12 μm |
| Spectral Band |
8-14 μm |
| Noise Equivalent Temperature Difference (NETD) |
≤ 50 mk@f/1.0 |
| Temperature Measurement Method |
Spot Measurement, Area Measurement, Center Point Temperature Measurement |
| Temperature Measurement Range |
High Gain: -20° to 150° C |
| Low Gain: | 0° to 600° C , 0° to 1600° C(With Infrared Density Filter) |
| Temperature Alert |
Supported |
| Sun Burn Protection |
Supported |
| FFC |
Auto, Manual |
| Palette |
White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron |
